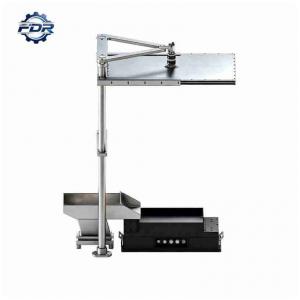

In the world of high-speed automated assembly, a machine vision system is only as good as the data fed into it — and too often, that data is dangerously incomplete. A new technical briefing from automation manufacturer FIDER underscores a costly pattern: when project teams hand off only idealized CAD files to their integrator, real-world variables like lighting glare, part surface variations, and communication lag can derail commissioning for weeks. The message is clear — specifying a Custom Pick and Place Vision System demands far more than clean digital models.
Providing Production-Grade Part Samples and Material Variances
The single most critical handoff in any vision project, according to FIDER, is physical part samples drawn from actual production runs. Integrators simply cannot calibrate optical edge detection algorithms using sterile 3D-printed prototypes or pristine CAD geometry. Real-world processes — injection molding, metal stamping, die-casting — introduce subtle material variations that directly affect machine vision reliability. To account for this, buyers should assemble a comprehensive sample set that captures the full range of production variances.
Also worth a look: FIDER tackles tricky odd-form electronics assembly with precision pick-and-place automation and FIDER shows how to sync feeding, vision, and robots without production line lag.
That set should include parts from multiple production lots manufactured with different raw material batches, which reveals resin color shifts and pigment density changes. Samples from multi-cavity tooling are also essential, as minor parting line flash and gate vestige heights alter part silhouettes from cavity to cavity. Additionally, parts with actual post-processing finishes — matte sandblasting, reflective plating, anodizing, or residual stamping oils — must be supplied. Finally, known defective components with maximum allowable burrs, minor dents, or slight warping should be provided to validate defect filtering thresholds. Testing vision algorithms against these real physical samples allows integrators to engineer illumination and optical filtering that accommodate natural process drift without triggering false rejects.
Defining Field of View, Resolution, and Inspection Accuracy
Accurate vision specification hinges on a clear definition of the relationship between the physical inspection area, camera sensor resolution, and required placement tolerance. Integrators need precise dimensional boundaries to select appropriate optical sensors and lenses. Critical optical parameters include the exact field of view dimensions — for instance, a 200 mm by 200 mm flexible feeder vibration plate or an indexing conveyor nest. Working distance must also be stated, factoring in available vertical clearance between the camera lens and the component surface, as well as robot arm travel paths and overhead frame beams.
Required inspection accuracy must be defined explicitly: whether the system needs general positional guidance at ±0.1 mm or high-precision feature verification between ±0.01 mm and ±0.05 mm. Sensor resolution and lens selection are equally vital, with high-resolution sensors between five and twelve megapixels paired with low-distortion telecentric lenses recommended to eliminate optical parallax errors across the field of view. Clarifying these optical requirements ensures the Custom Pick and Place Vision System delivers sub-pixel edge detection without distortion across the entire working zone.
Optical Illumination Geometry and Wavelength Selection
Proper lighting geometry is what separates readable part contours from confusing background noise. Integrators must know the optical reflectivity, surface texture, and color of incoming parts to design an effective illumination configuration. Engineers should discuss several lighting configurations with their integrator. Transmitted backlighting, for example, uses high-uniformity LED backlight plates mounted beneath translucent feeder trays to produce sharp black silhouettes, ideal for verifying outer geometric profiles and pin pitch.
Polarized coaxial illumination directs light along the camera optical axis through polarizing filters, eliminating specular reflections on shiny metallic terminals and polished electronics shielding cans. Diffuse dome lighting employs spherical diffuse domes to eliminate harsh shadows on complex three-dimensional stamped parts, providing uniform illumination across curved surfaces. Wavelength selection is also critical — choosing specific LED wavelengths such as red, blue, or infrared can enhance optical contrast against colored plastics or suppress ambient factory daylight variations. Specifying part optical characteristics early allows integrators to build robust lighting enclosures that isolate the vision system from fluctuating factory lighting.
Cycle Time Budgets and Processing Latency Limits
High-speed automated cells demand vision systems that process images rapidly without stalling robotic motion. A robotic arm capable of seventy picks per minute sits idle if the vision computer takes too long to analyze part contours. Project teams must allocate explicit time budgets across the vision sequence. Image acquisition and strobe exposure typically occupy two to five milliseconds to capture sharp images on briefly paused feeder surfaces. Contour extraction and pattern matching are allocated fifteen to twenty milliseconds to locate multiple part candidates in the field of view.
Coordinate transformation and communication output require roughly five milliseconds to transmit calibrated X-Y coordinates and rotational angles to the robot motion controller. The total processing latency budget — the entire vision cycle — must complete within 20 to 30 milliseconds to match high-speed robotic cycle times. Establishing an explicit latency ceiling ensures the Custom Pick and Place Vision System utilizes multi-threaded software algorithms capable of sustaining high-volume production throughput.
Coordinate Hand-Eye Calibration and Communication Protocols
Translating camera pixels into accurate physical coordinates requires systematic hand-eye calibration between the vision camera and the robotic manipulator. Integrators must understand the physical mounting relationship and network communication protocols used in the cell. Key integration parameters include camera mounting geometry — whether the primary camera is mounted statically to an overhead frame or on the robot wrist, and whether secondary in-flight cameras are required. Calibration grid procedures should be established using precision dot grid plates to calculate pixel-to-millimeter scaling, optical distortion correction, and rotational offsets.
Industrial fieldbus interfaces must be defined, including network communication protocols such as Ethernet TCP/IP sockets, EtherCAT, PROFINET, or RS232 serial links. Data packet structuring should standardize coordinate string formatting, delimiter characters, and handshake acknowledgement bits between the vision computer and the PLC. Automation manufacturers like FIDER standardize coordinate hand-eye calibration protocols to ensure plug-and-play communication between intelligent vision systems and Delta robotics, achieving repeatable placement accuracy of ±0.05 mm.
Defect Filtering Criteria and False Rejection Limits
A pick-and-place vision system often serves as both a motion guide and a quality inspection gate. Clarifying the boundary between positional guidance and defect detection prevents operational conflicts on the plant floor. Essential defect criteria to define include the defect inspection scope — whether the camera should only verify part pickability or also inspect for micro-scratches, burrs, flashing, or color variations. Quantitative acceptance thresholds should define numerical tolerances for acceptable dimensional drift rather than subjective descriptions like “clean” or “smooth.”
Maximum acceptable false rejection rates must be established with realistic limits, such as rates below 0.1%, to prevent unnecessary component scrap. Reject handling procedures should specify whether rejected parts should be picked and diverted to a quarantine bin or left on the feeder for secondary inspection cycles. Providing comprehensive technical details to your Custom Pick and Place Vision System integrator ensures rapid commissioning and reliable production throughput. To review vision system specifications or discuss optical integration requirements for delicate components, explore engineering resources at https://www.fdrautomation.com/ to schedule an integration consultation.
